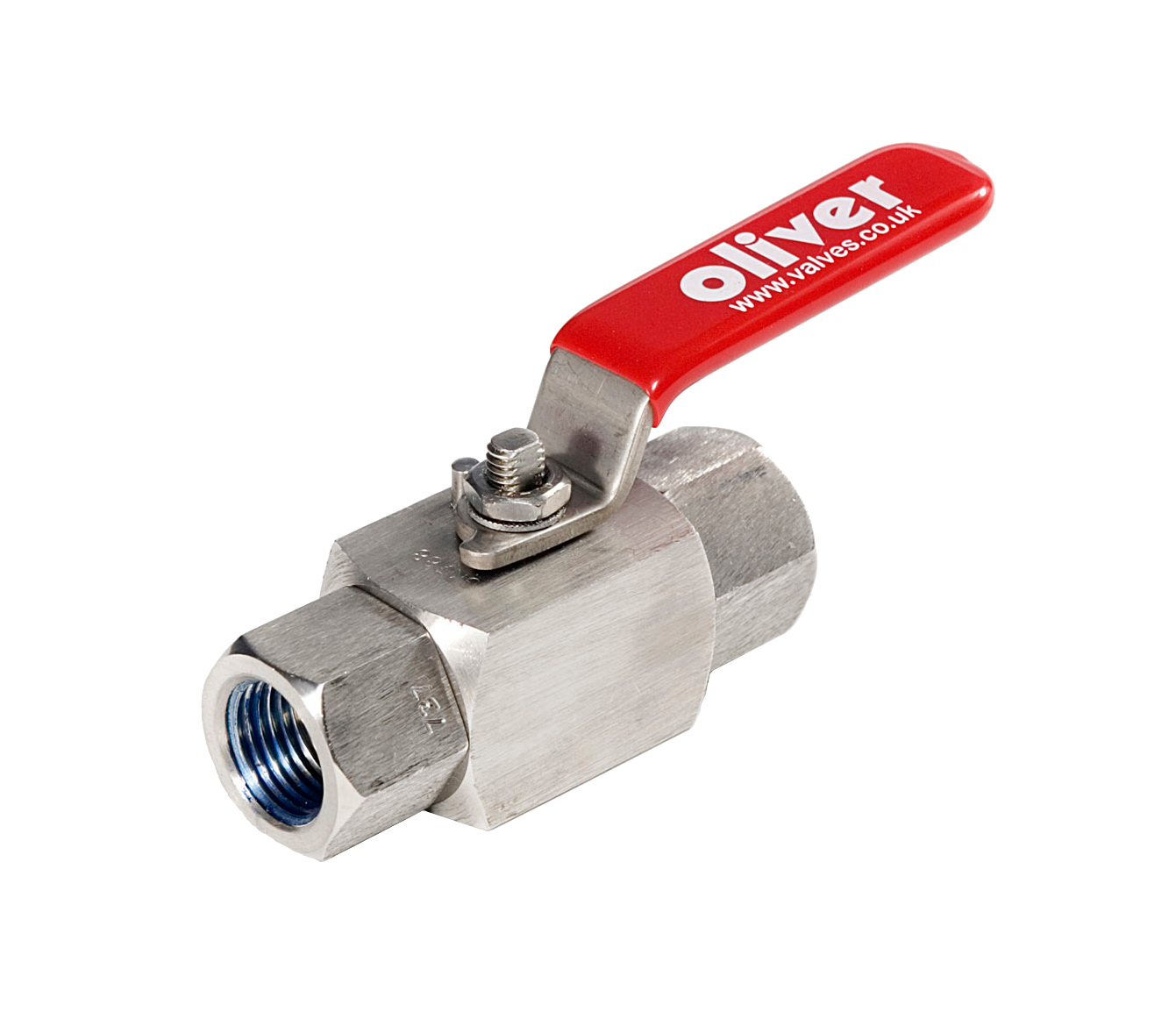

B6F Ball Valve

B6F Ball Valve

The ‘B6’ Type Single Isolating Ball Valve is designed for safe and reliable isolation giving bubble tight shut off. Totally enclosed soft seats offer both positive sealing and low operating torques, from vacuum to high pressure service. Anti-blow out spindle is fitted as standard with the option of PTFE or Grafoil seals.


0.00
0.00

商品描述

The ‘B6’ Type Single Isolating Ball Valve is designed for safe and reliable isolation giving bubble tight shut off. Totally enclosed soft seats offer both positive sealing and low operating torques, from vacuum to high pressure service. Anti-blow out spindle is fitted as standard with the option of PTFE or Grafoil seals.



High Pressure Ball Valve Specifications:
PSI Rating 6,000 PSI
Temperature 120 Deg C
Seals PTFE
Thread Form NPT (AS STANDARD) / BSPP / BSPT other on request
Connection Size From 1/4" to 1"
Handle Lever
Seats PTFE/PVDF
Bore 10mm / 14mm / 20mm
