Selector Ball Valves

Selector Ball Valves

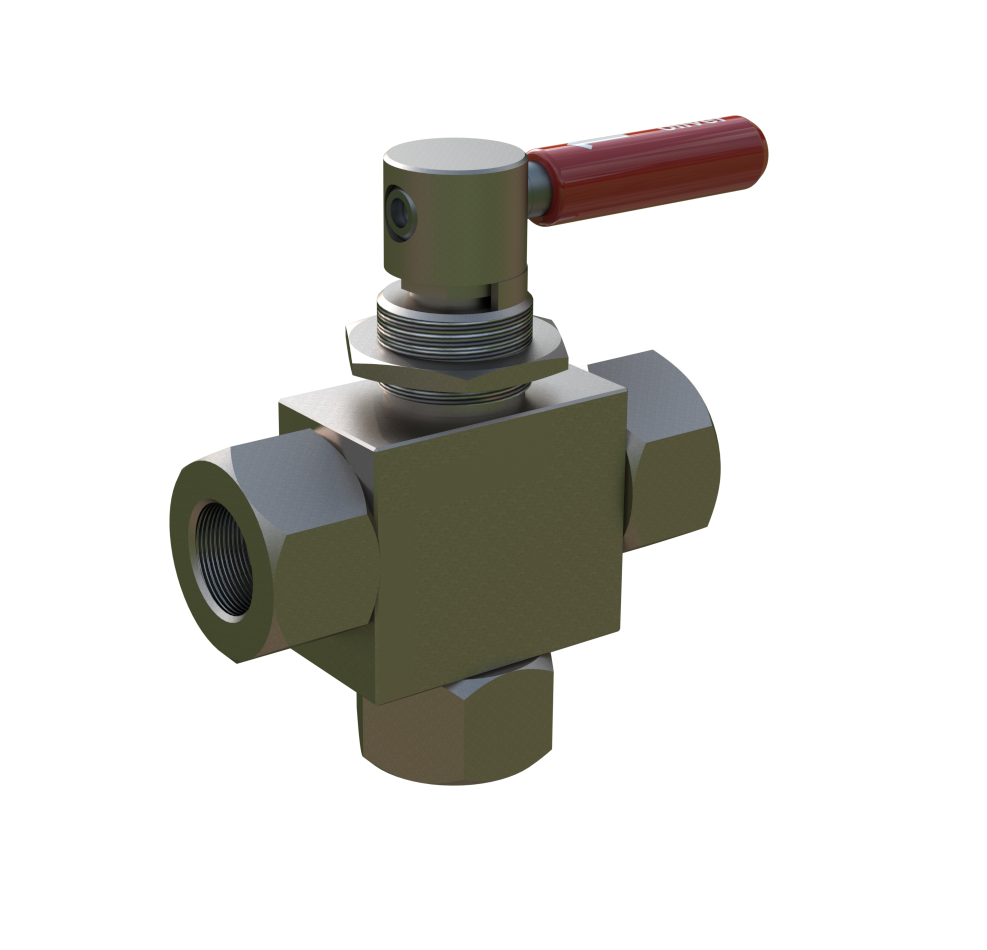

The ‘B6PMBSEL’ Type 3 way Flow Diverting Ball Valve is designed for safely diverting flow to one of the two outlet ports. Totally enclosed soft seats offer both positive sealing and low operating torques, from vacuum to high-pressure service. Anti-blow out spindle is fitted as standard with the PTFE/PEEK spindle and body seals. 4mm Bore only.


0.00
0.00

商品描述

The ‘B6PMBSEL’ Type 3 way Flow Diverting Ball Valve is designed for safely diverting flow to one of the two outlet ports. Totally enclosed soft seats offer both positive sealing and low operating torques, from vacuum to high-pressure service. Anti-blow out spindle is fitted as standard with the PTFE/PEEK spindle and body seals. 4mm Bore only.



Selector Ball Valve Specifications:
PSI Ratings 6,000 / 10,000 PSI
Temperature 121 Deg C
Seals PTFE/PEEK
Thread Form NPT
Connection Size From 1/4" to 1/2"
Handle Lever
Seats PEEK
Bore 4mm Only
